Name: EX serise HVLS big ceiling fan16 FT-24 FT
Brand: julai
SKU: 00132
Price: 999.00 USD
Availability: InStock
Rating: 5 (1 reviews)

We use cookies to improve your online experience. By continuing browsing this website, we assume you agree our use of cookies.

High Volume Low-Speed Explosion-proof HVLS Fans Technical Parameters

Model	Fan diameter	Motor power	Max speed	Rated voltage	Rated current	Air volume	Max coverage	Weight	Noise
HVLS-DF1573	7.3m (24')	1.8kw	57rpm	380V/220V	3.6A/5.8A	14800 m³/min	1850m²	135kg	55dBA
HVLS-DF1561	6.1m (20')	1.8kw	65rpm	380V/220V	3.6A/5.8A	13500 m³/min	1480m²	127kg	55dBA
HVLS-DF1555	5.5m (18')	1.8kw	75rpm	380V/220V	3.6A/5.8A	12000 m³/min	1200m²	124kg	55dBA
HVLS-DF1549	4.9m (16')	1.8kw	80rpm	380V/220V	3.6A/5.8A	11000 m³/min	900m²	121kg	55dBA

Language / Currency

Language

Currency

EX serise HVLS big ceiling fan16 FT-24 FT

Quantity

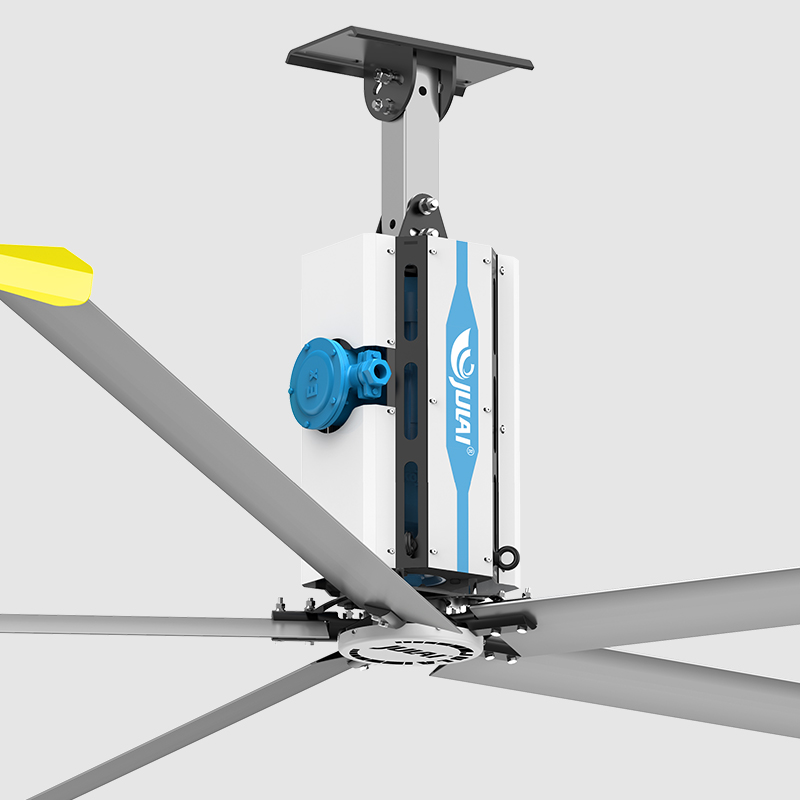

EX series EXPLOSION-PROOF HVLS FAN

High Volume Low-Speed Explosion-proof HVLS Fans Technical Parameters

Advantage

1.Explosion-proof motor, IP65 protection grade;

INSTALLATION DIAGRAM

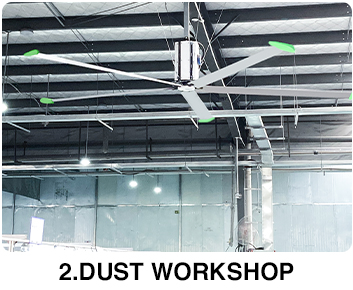

The large size of ex serise makes it widely applicable for industrial settings such as:

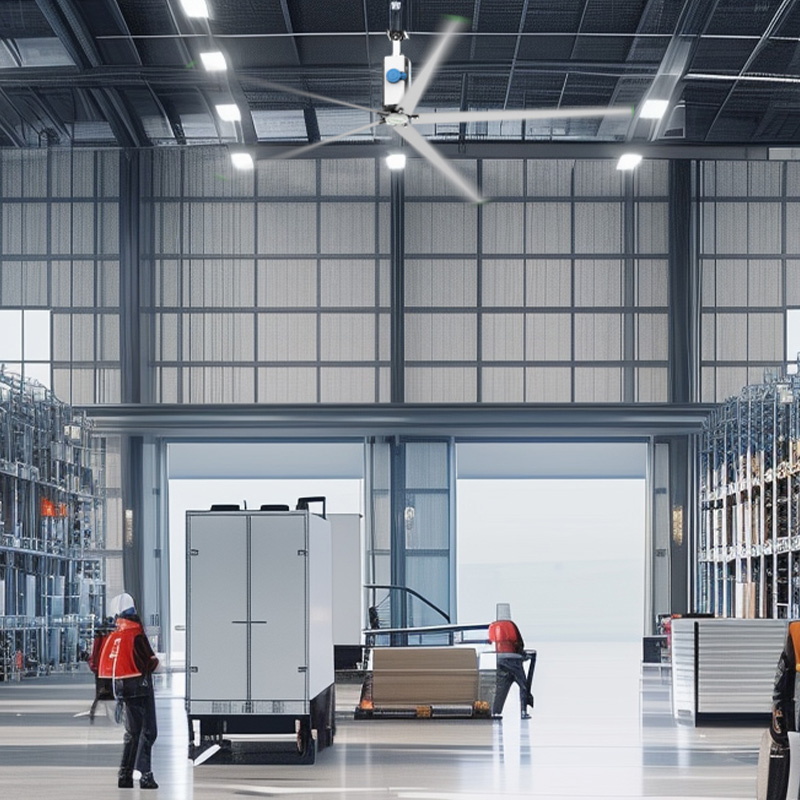

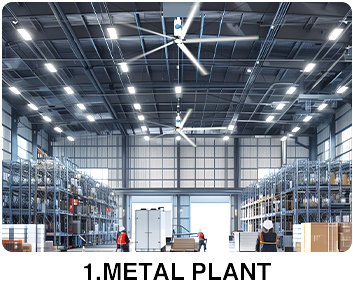

1. Factories and Warehouses: Enhances air circulation in large industrial spaces, optimizing working conditions for employees.

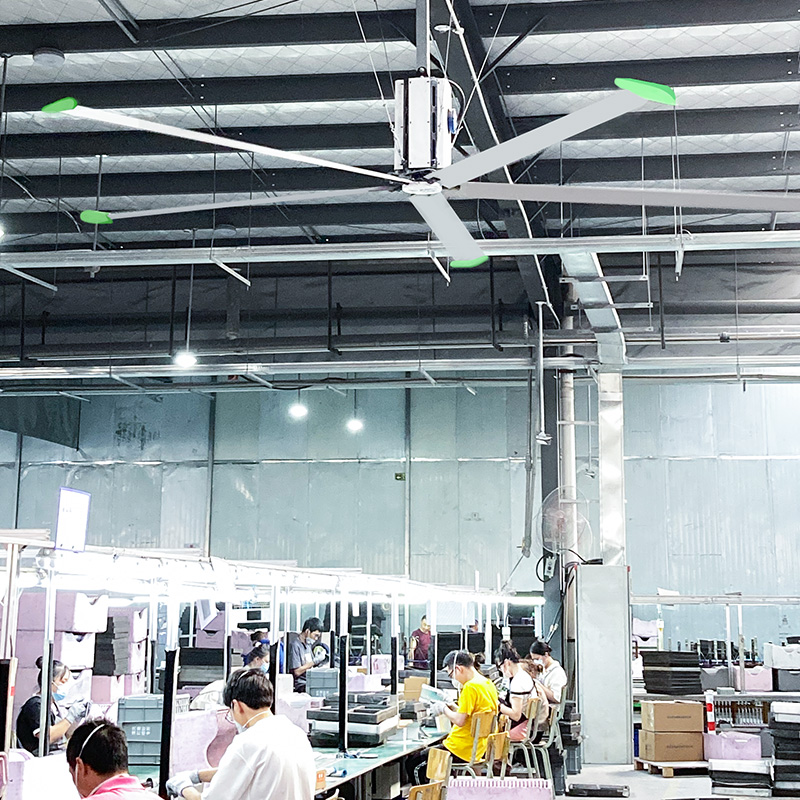

2. Manufacturing Plants: Regulates temperatures for precise processes.

3. Food Processing Facilities: Controls humidity to preserve product quality.

4. Agricultural Storage: Maintains ideal conditions for crop preservation.

5. Animal Farming: Supports ventilation in livestock facilities, ensuring a comfortable and healthy environment for animals.

6. Automotive Workshops: Improves air circulation and removes fumes for a comfortable work environment.

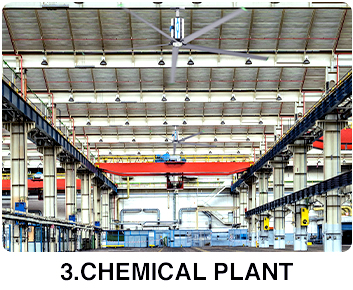

7. Chemical Plants: Manages fume dispersion for worker safety.

8. Textile Mills: Regulates temperature and humidity during textile manufacturing.

9. Pharmaceutical Production: Contributes to cleanroom environments for sterile conditions.

10. Construction Sites: Combats heat and dust for worker well-being.
